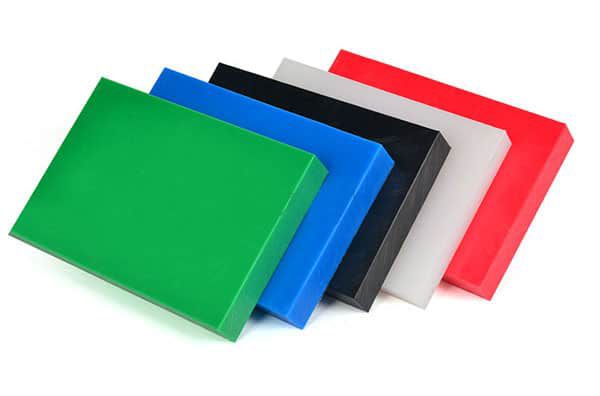

Orbilan Semi Finished Products
ORBILAN produces semi-finished products from high-molecular and ultra-high-molecular low-pressure polyethylene using the press-sintering process. The basis for this is the highest quality raw materials. Regular tests of the material characteristics in our in-house technical centre and by external partners ensure a consistently high quality standard.
Orbilan Grades
Innovative production technologies are used in our modern production plant. The recipes for our semi-finished products consist of high-quality raw materials and are subject to a permanent monitoring process. Our production facilities are controlled, monitored and visualised by modern programmable logic controllers and computer systems.
Regular testing of material characteristics in our in-house technical centre and in cooperation with external partners ensures the consistent quality of our high-quality products.
ORBILAN PE 1000
Approved: FDA & EU 10/2011
REACh
RoHs compliant
Industrial sectors
- General machine and plant engineering
- Food processing and bottling
- Conveying and packaging
- Bulk material handling
- Galvanising technology
- Environmental technology
- Chemical industry
Areas of application

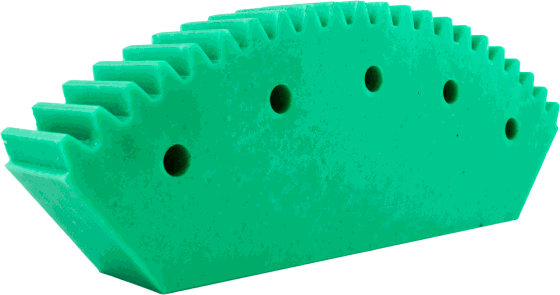

- Chain guides and cogwheels
- Conveying elements, guide rails and slide elements
- Star wheels
- Deflection rollers and curved tracks
- Bulk material bins and silo lining
- Lining for bulk material wagons
- Baffles
- Slide bearings
- Guide boards
- Pump components
- Seals
- Prallplatten
- Gleitlager
- Profilleisten
- Teile für Pumpen
- Dichtungen
Characteristics
- Very good sliding properties
- Very good wear resistance
- High impact strength
- Very low water absorption
- Good noise damping properties
- Good chemical resistance
- Physiologically harmless
- Meets directive 2002/72/EC (contact with food)
-
ORBILAN PE 8000
Approved: FDA & EU 10/2011
REACh
RoHs compliant
Industrial sectors
- General machine and plant engineering
- Food processing and bottling
- Conveying and packaging
- Bulk material handling
Areas of application
- Chain and belt running guides, cogwheels
- Conveying elements, guide rails and slide elements
- Deflection roller and curved tracks
- Bulk material bins and silo lining
- Lining of bulk material wagons
- Friction bearings
Characteristics
- Extremely good sliding properties
- Very good wear resistance
- High impact strength
- Very low water absorption
- Good noise damping properties
- Good chemical resistance
- Physiologically harmless
- Meets directive 2002/72/EC (contact with food)
ORBILAN PE 500
Approved: FDA & EU 10/2011
REACh
RoHs compliant
Industrial sectors
- General machine and plant engineering
- Food processing and bottling
- Conveying and packaging
- Gastronomy and industrial kitchens
- Meat and fish processing
- Butcher shops, abattoirs and refrigerated storage houses
- Railway stations, airports and hospitals
Areas of application
- Cutting boards, cutting tables and chopping block layers
- Carving tables and counter tops
- Agitation spades and mincer feeders
- Ramming protection and
- swing doors
- Insertion sheets for vacuum packaging machines
- Stamp boards
Characteristics
- Good sliding properties
- Very low water absorption
- Good noise damping properties
- Good chemical resistance
- Physiologically harmless
- Meets directive 2002/72/EC (contact with food)
